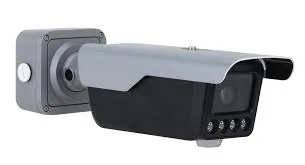

Dahua ITC413-PW4D-IZ1 4MP 3.2-10.5mm Bullet ANPR Plaka Kamera

MARKA

DAHUA

GARANTİ SÜRESİ

24 AY

EAN

6923172581396

Sensör Tipi

1/1.8" CMOS

Maksimum Çözünürlük

4MP
2688 x 1520

Lens

Lens Type : Motorized Vari-focal
Focal Length : 2.7 mm–12 mm
Max. Aperture : 1.4
Field of View : H: 92° (W)—46.1° (T), V: 49° (W)—26.0° (T), D: 109° (W)—52.8° (T)
Focus Control: Auto, area focus, manual

Minumum Aydınlatma

DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1:
0.001 Lux@F1.4 (Color, 30 IRE)
0.0002 Lux@F1.4 (B/W, 30 IRE)
0 Lux (Illuminator on)
DHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3:
0.001 Lux@F1.6 (Color, 30 IRE)
0.0002 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

Objektif Hızı

Auto/Manual 1/25s~1/10,000s

Gece & Gündüz

IR filter, support three modes: color/B/W/auto

Dijital Gürültü Azaltma

3D NR

Geniş Dinamik Alan

140dB

Video Sıkıştırma

H.264H; H.264B; H.264M by default; H.265; MJPEG;
H.264M

Video Hızı

Main stream: 4M (2688 × 1520)/1080p (1920 ×
1080)/720p (1280 × 720)
Sub stream: 720p (1280 × 720)/960H (960 × 576, 960
× 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352
× 240)

Resim Ayarları

Brightness; contrast; saturation; gamma; sharpness; gain;
white balance

Ağ Depolama Alanı

Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G,
256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16
G, 32 G, 128 G, 256 G

Alarm Tetikleyici

Alarms for events of defocus, no storage card,
storage card no space, storage card error, network
disconnection, IP conflict, and illegal access.

Portlar

Audio Output : 1 channel (RCA port)
Network Port : RJ-45 (10/100/1000 self-adaptive Ethernet Port)
Alarm Input : 2, optocoupler input (wet node on-off value: 5 V)
Alarm Output : 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers
RS-485 : 2 (half duplex,Transparent,DHRS,Push Data through Serial Port)
Reset Button : Yes
Wiegand : 1 channel, SHA-1 26 bit

Protokoller

HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP;
SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP;
PPPoE

Güç Gereksinimi

Power Supply : 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,
(44V to 57V), 0.455A to 0.351A,max.20W

Power Consumption
Power consumption in different conditions:
No lighting < 6 W
Lighting <12 W
Speaker and Red/Blue Light Warning on < 17 W

Ek Özellikler

Product Dimensions : 396.0 mm × 120.8 mm × 127.8 mm
Net Weight : 2.3 kg (5.07 lb)
Gross Weight : 3.2 kg (7.05 lb)
