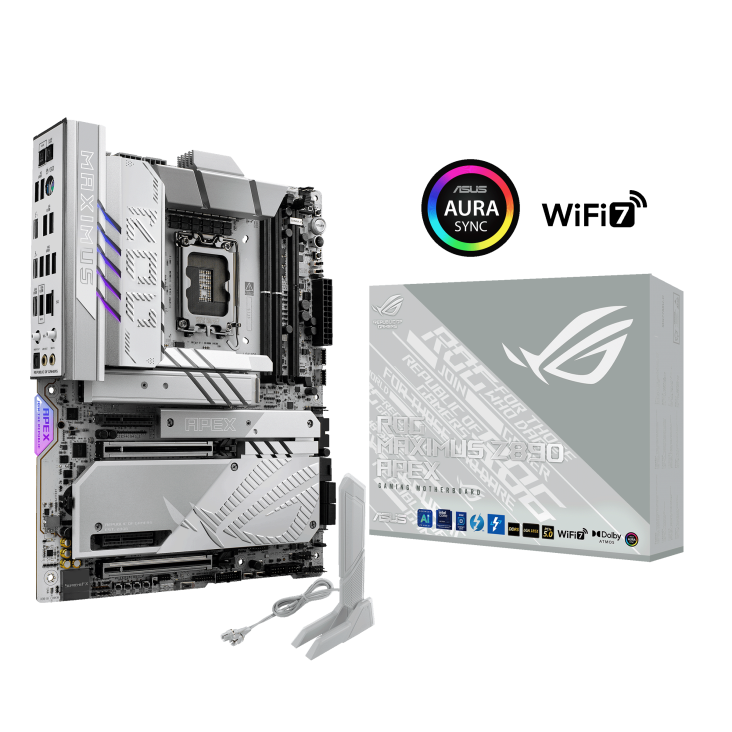

Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3
| STOK NO | 81330 |
| MARKA | ASUS |
| ÜRÜN ADI | Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 |
| GARANTİ SÜRESİ | 36 AY |
| EAN | 4711387754290 |
| İŞLEMCİ | Support Intel® Core™ Ultra Processors(Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| YONGA SETİ | Intel® Z890 Chipset |
| BELLEK | 2 x DIMM slots, max. 96GB, DDR5 Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| DAHİLİ GRAFİK | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **In Thunderbolt4TM mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ***In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. **** VGA resolution support depends on processors or graphic cards resolution. *****While installing the operating system, please ensure that your monitor is connected to a discrete graphics card. |
| GENİŞLEME YUVALARI | Support Intel® Core™ Ultra Processors(Series 2) * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** Intel® Z890 Chipset 2 x PCIe 4.0 x4 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| SES DESTEĞİ | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| LAN | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| USB PORTLARI | Rear USB (Total 11 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| DEPOLAMA ARAYÜZÜ | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* Support Intel® Core™ Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** Intel® Z890 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
| ARKA GİRİŞ/ÇIKIŞ PORTLARI | 2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port |
| DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header* *The Thunderbolt™ card can only be used when installed to the PCIEX4(G4)_2 slot. Ensure to install your Thunderbolt™ card to the PCIEX4(G4)_2 slot. |
| İŞLETİM SİSTEMİ DESTEĞİ | Windows 11 (22H2 & later) |
| FORM FAKTÖRÜ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , üst düzey performans ve genişletilebilirlik sunan, en son teknolojilerle donatılmış bir DDR5 anakarttır. Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , oyun ve içerik oluşturma tutkunları için özel olarak tasarlanmış bu anakart, dikkat çekici özellikleri ve yüksek kaliteli bileşenleriyle öne çıkmaktadır.
Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 Ana Özellikler:
Yeni Nesil DDR5 Desteği: DDR5 bellek ile daha yüksek hız ve bant genişliği sunarak, sistem performansını önemli ölçüde artırır. Oyun ve ağır yük altında dahi kesintisiz deneyim sağlar.
Gelişmiş Ses Desteği: Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , Yüksek kaliteli ses bileşenleriyle donatılmıştır, böylece kullanıcılar için kristal netliğinde ses deneyimi sağlar. Oyunlarda ve multimedya içeriklerinde etkileyici bir deneyim sunar.
GLAN (Gigabit LAN) Bağlantısı: Hızlı ve güvenilir ağ bağlantısı sağlayarak çevrimiçi oyunlarda ve yüksek veri transferinde düşük gecikme süreleri ile kesintisiz performans sunar.
HDMI ve SATA3 Bağlantı Noktaları: Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , HDMI çıkışı ile yüksek çözünürlüklü görüntü aktarımı sağlar. SATA3 bağlantı noktaları ile hızlı veri transferi için modern depolama çözümleriyle uyumludur.
Gelişmiş Soğutma Çözümleri: ASUS'un patentli soğutma teknolojileri ile donatılmıştır, bu da yüksek sıcaklıklarda bile sistem stabilitesini korur. Hava akışını optimize eden tasarımı sayesinde uzun süreli kullanımlarda dahi performans kaybı yaşamazsınız.
Gelişmiş BIOS ve Overclock Desteği: Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , Kullanıcı dostu arayüzü ile sistem ayarlarını kolayca yapmanızı sağlar. Performansı artırmak için overclock yetenekleri ile donatılmıştır.
Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , oyun ve profesyonel uygulamalar için mükemmel bir temel oluşturan, yüksek performanslı ve güvenilir bir anakart arayanlar için ideal bir seçimdir. Asus Rog Maximus Z890 Apex 1851p Ddr5 Ses Glan Hdmi Sata3 , yüksek kaliteli bileşenleri ve yenilikçi tasarımıyla, sisteminizin tüm potansiyelini ortaya çıkarmak için tasarlanmıştır.
| Bellek Tipi | : | DDR5 |
| Chipset | : | Z890 |
| Dahili Grafik | : | VAR |
| Form Faktörü | : | ATX |
| Marka | : | ASUS |
| Socket Cinsi | : | 1851P |
