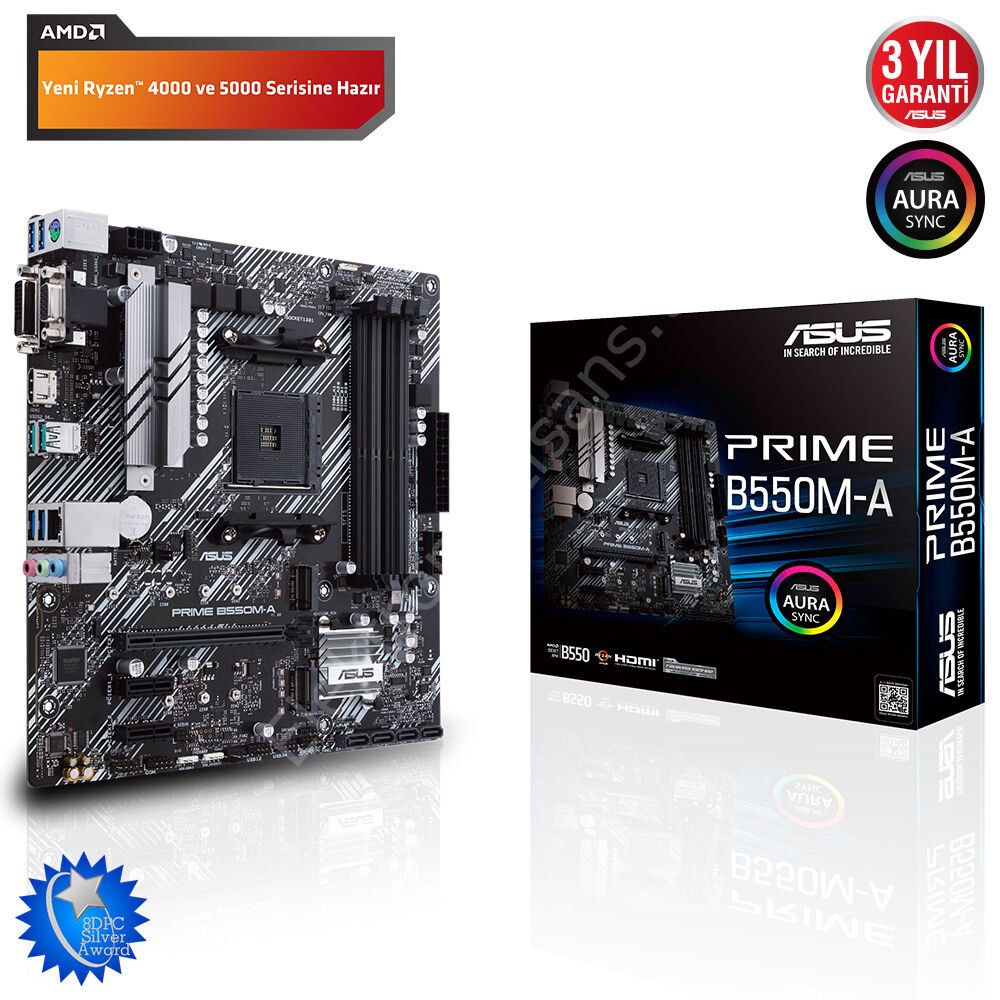

Asus Prime B550m-a Am4 Ddr4 Ses Glan Hdmi/dvi/vga Sata3 Usb3.2 Matx
| MARKA | ASUS |
| GARANTİ SÜRESİ | 36 AY |
| EAN | 4718017755528 |
| İŞLEMCİ | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors * |
| YONGA SETİ | AMD B550 |
| BELLEK | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.) 4000(O.C.)/3866(O.C.) 3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000 2800/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen™ 4000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.) 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) 3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| DAHİLİ GRAFİK | 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
| GENİŞLEME YUVALARI | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen™ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 |
| SES DESTEĞİ | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| USB PORTLARI | Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |

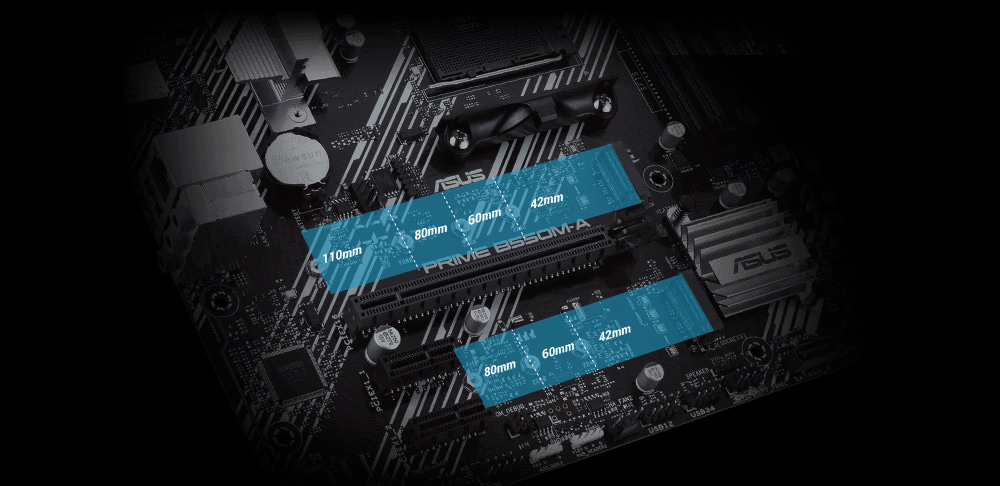

| DEPOLAMA ARAYÜZÜ | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |

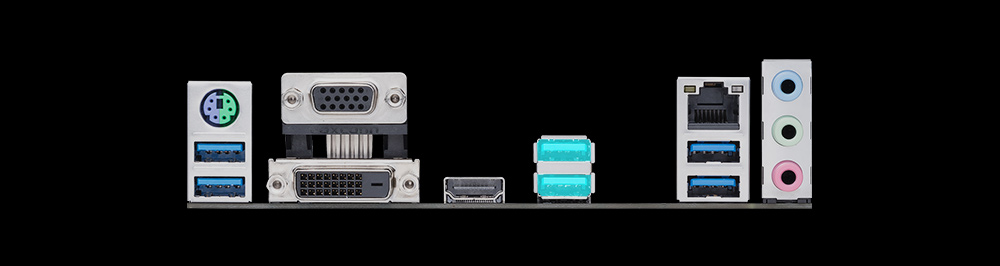

| ARKA GİRİŞ/ÇIKIŞ PORTLARI | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) |
| DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| İŞLETİM SİSTEMİ DESTEĞİ | Windows® 10 64-bit |
| FORM FAKTÖRÜ | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| KARGO VE GARANTİ | Ürünlerimiz her zaman stokta olup, resmi tatil günleri hariç hafta içi saat 16:00’a ve Cumartesi saat 11:00’e kadar verilen siparişler aynı gün, yurt içi kargo ile özenle gönderilmektedir. Ayrıca, tüm ürünlerimiz tamamen orijinal olup, Türkiye distribütör garantisiyle desteklenmektedir. |

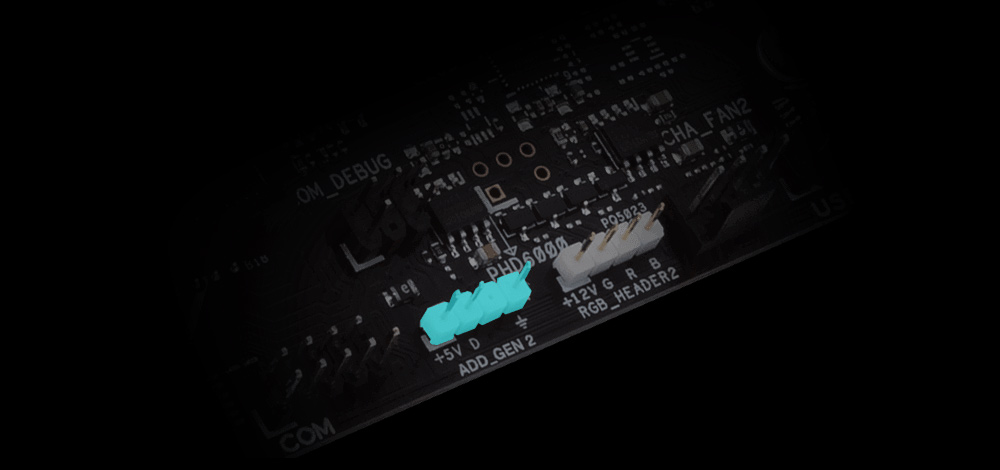

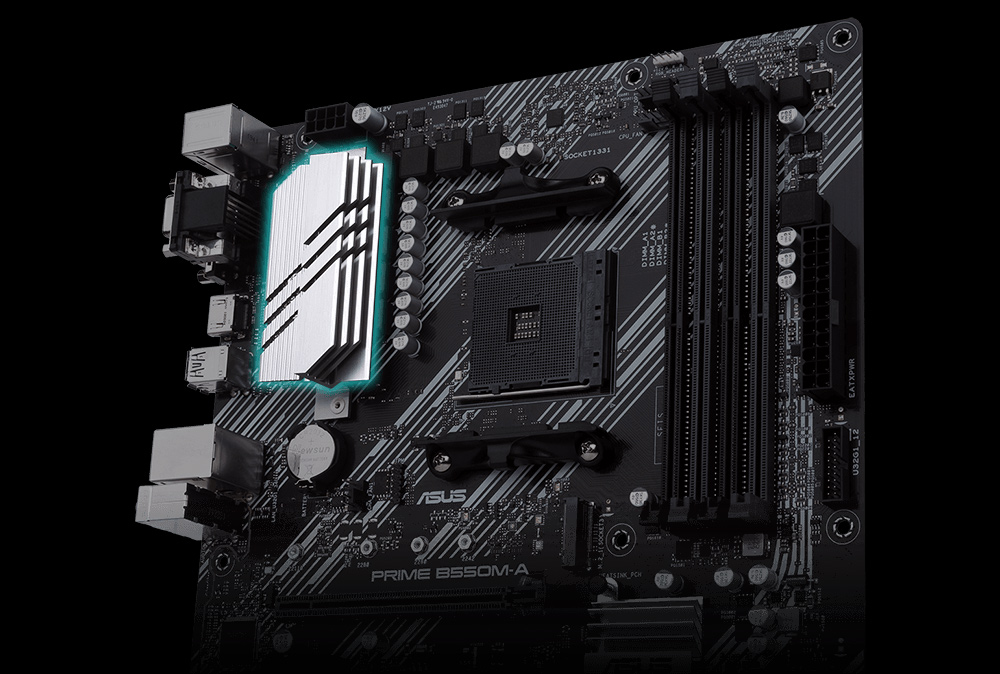

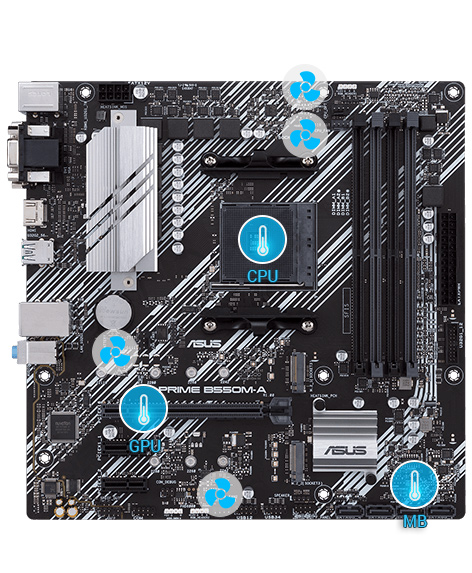

Kapsamlı soğutma: VRM soğutma bloğu, PCH soğutma bloğu ve Fan Xpert 2+ Ultra hızlı bağlantılar: Çift M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A Aura Sync RGB: RGB LED şeritler için yerleşik adreslenebilir Gen 2 başlıklar, Aura Sync özellikli donanımla kolayca senkronize edilir
|
| Bellek Tipi | : | DDR4 |
| Chipset | : | B550 |
| Dahili Grafik | : | VAR |
| Form Faktörü | : | MATX |
| Marka | : | ASUS |
| Socket Cinsi | : | AM4 |
